Equipment Configuration:

Spring inspection system, spring feeding system (centrifugal disc feeding), spring sorting system, spring feeding system, spring seat feeding system, spring seat inspection system, riveting press system, assembly system, finished product spring load testing system, finished product inspection system, 4-axis robot blanking & placement system, etc.

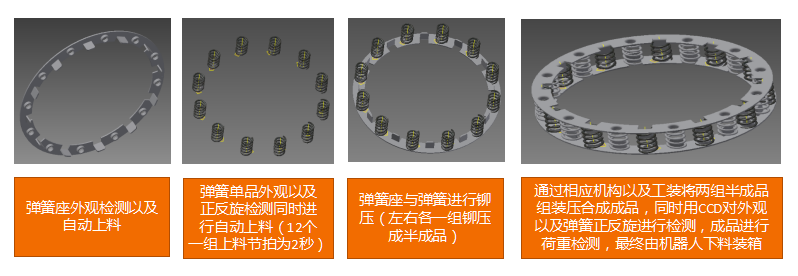

Equipment Working Principle:

The equipment automatically feeds spring seats and springs, then completes riveting, assembly, inspection and finished product blanking & placement processes in sequence.

Key & Difficult Points of Equipment:

Supports simultaneous feeding of 24-spring, 27-spring, 40-spring and 56-spring workpieces within 1 to 2 seconds.

Equipment Advantages:

Unmanned production mode (reduces labor demand by 3 workers). It boosts production efficiency by 15 to 20 times compared with manual assembly, and greatly stabilizes finished product quality.
