Equipment Configuration:

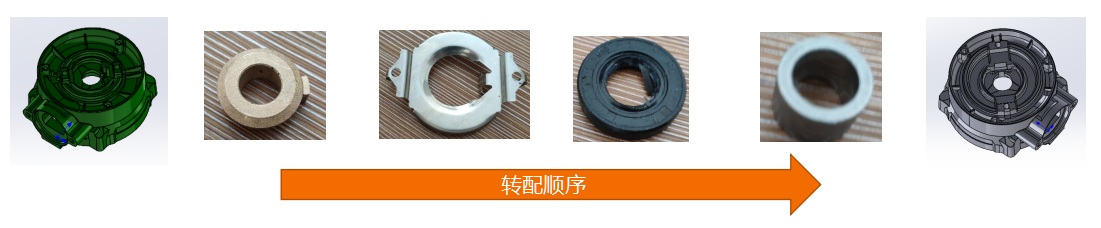

Main housing riveting rotary table machine

Automatic feeding & pressing of copper ring (CCD for angle recognition)

Automatic feeding & pressing of copper ring (CCD for angle recognition)

Automatic feeding & pressing of sealing ring

Part position tolerance inspection

Full CCD inspection & offline unloading

Equipment Working Principle:

This equipment adopts a rotary table to complete multi-station riveting of housings. All working stations are connected into a complete production line via double-speed chain conveyor, with a staffing of 5 operators.
