Equipment Configuration

Product inspection system, magnetizing system, spring feeding system, product feeding system, product assembly system, finished product inspection system, product oil coating system and other modules.

Working Principle of Equipment

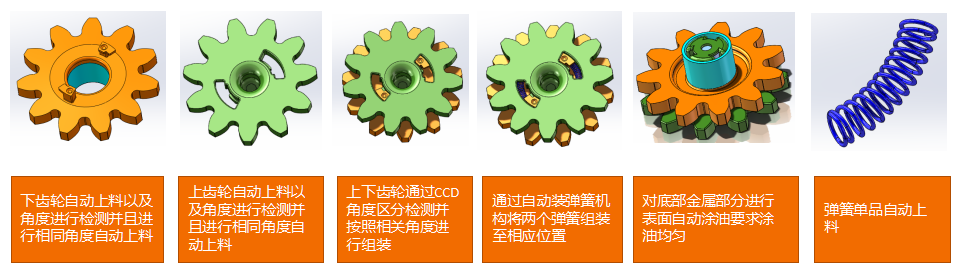

The equipment automatically feeds products and springs, then completes the processes of magnetization, assembly, inspection, oil coating and blanking in sequence.

Key Technical Difficulties of the Equipment

The spring has a diameter of 2 mm and a length of 5 mm, with assembly precision up to 0.1 mm. Strict standards are imposed on assembly angles and positions; the cycle time for single assembly is 2–3 seconds.

Equipment Advantages

Unmanned production, cutting labor input by 4 workers;

Remarkably boosted production efficiency, with output 5 times higher than manual production;

Stable and consistent product quality.
